Kusukusu Co., Ltd.

Specification MS-ME type
Model		ME-150・N	ME-300・N	ME-500・N	ME-700・N	ME-900・N
Insertion capacity [m³/h]		0.1~0.4	0.5~1.0	1.0~2.0	1.8~3.5	2.5~5.0
Insertion pressure [Kg]		2,000	3,500	5,000	8,000	11,000
Power Source (single phase/three phase) [KW]		200	200	200	200	200

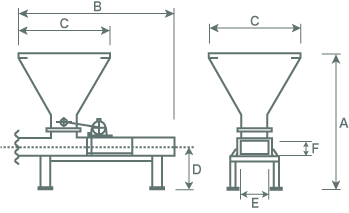

Size	A [mm]	1,050	1.685	1,950	2,190	2,625
	B [mm]	1,215	1,960	2,275	2,550	3,100
	C [mm]	700	1,120	1,300	1,455	1,750
	D [mm]	400	635	735	825	1,000
	E [mm]	240	380	450	500	600
	F [mm]	150	240	280	315	375

(For improving performance we may change specification and size without warning.)
